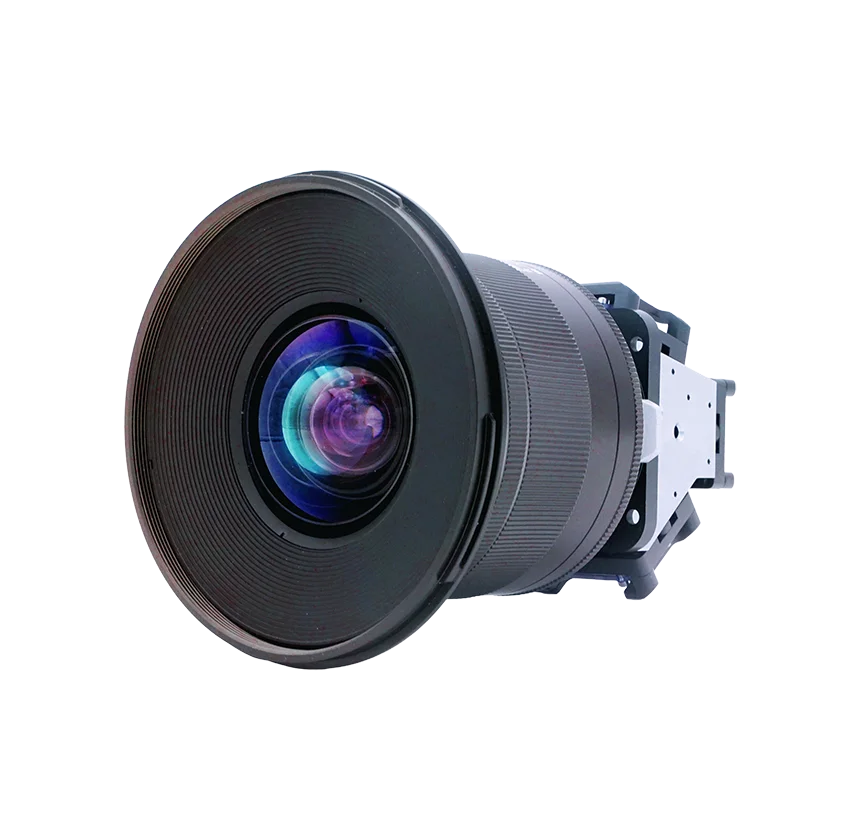

Eoptic’s Cambrian M-Series is the next evolution in compact multi-modal imaging systems. Behind a single aperture, the custom trichroic prism assembly separates incoming light to three individual channels.
Optical filtering options include any combination of global, per-channel, prism-surface coating and at-sensor patterned arrays, yielding the most flexible single aperture multi-modal imaging platform available today.
The optical design incorporates advanced compensation to correct spherical and chromatic aberrations while ensuring matched magnification for each channel across a wavelength range of 400-2000nm.
Each detector is aligned with sub-pixel precision, establishing a new benchmark for accuracy and versatility in multi-modal imaging.
VIS / NIR / SWIR / Polarization / Spectroradiometer
Multi Focal Length
(1, 2, 3, 4X FL)
High Dynamic Range
(12 f-stop optical HDR)
Event Detector
Colorimetric
3 custom band
(VIS-SWIR)
NDVI
(Green/Red Edge/NIR)
5 channel
(RGB, NIR1, NIR2)
7 channel
(RGB, RGB1, NIR)
Polarization
(0, 45, 90) or (0, 60 ,120)
CSI-2
USB 3.0
GSML2
FPD Link III
GigE
(some options sensor specific)
Mono
Bayer
Custom patterned filter arrays
(available with specific sensors)
Polarizer
(multiple options)
Bandpass
(multiple options)
Long / Short Pass
(multiple options)
Neutral coatings 33/33/33
(other splits on request)
Custom dichroic coatings

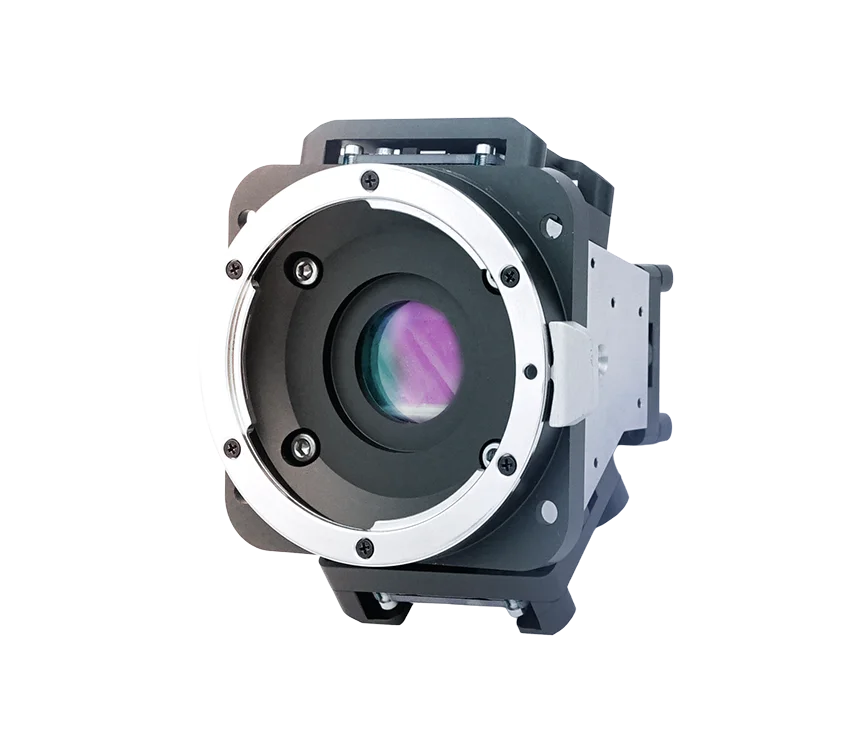

F mount
(standard)
36mm minimum flange back distance, other mounts available on request
